Ultran U710x聚焦超声无损检测系统

台式分析系统

U710x is Ultran’s next generation, turnkey inspection system for 2D C-Scan generation, optimized for use in non-contact (air-coupled), immersion, and direct/delayed contact modes. The U710x is faster and has higher sensitivity than any other non-contact quality inspection system in the industry. Its lightweight design facilitates its use in a wide variety of applications, including those involving fieldwork.

U710x 是 Ultran 公司推出的新一代全功能检测系统，适用于 2D C 扫描检测。该设备优化设计，可适用于非接触式检测、浸没式检测以及直接接触/延迟接触检测模式。与业界其他非接触式质量检测系统相比，U710x 具有更快的检测速度和更高的灵敏度。其轻巧的设计使其能够广泛应用于各种应用场景，包括现场检测工作。U710x System U710x 系统

Product Attribute Overview

产品属性概述

The U710x is powered with 390V tone burst excitation, 84 dB of dynamic gain, and numerous filter options for signal enhancement. U710x is available with numerous X-Y scanning options for small sample analysis or large part inspection.

U710x 配备了 390V 的脉冲激励方式，动态增益达到 84 分贝，同时还提供了多种滤波选项以优化信号质量。U710x 还具备多种 X-Y 扫描功能，适用于小样本分析或大型零件检测工作。

研究工作室后期处理软件套件

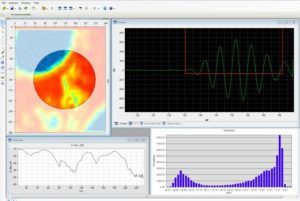

Ultran’s post-processing software includes statistical analysis upon a full scanned image or a selected sample, color palette adjustment, A-scan capture for every scanned point, histogram generation, and more.

Ultran 的后处理软件包括对整个扫描图像或选定样本进行的统计分析、颜色调色、针对每个扫描点进行 A 扫描捕获、直方图生成等功能。

尺寸和成像框架选项

The U710x system is available in several sizes and configurations, as shown below. Contact us for pricing information.

U710x 系统有多种尺寸和配置可供选择，具体详情请参见下方说明。如需了解价格信息，请发与我们联系。
